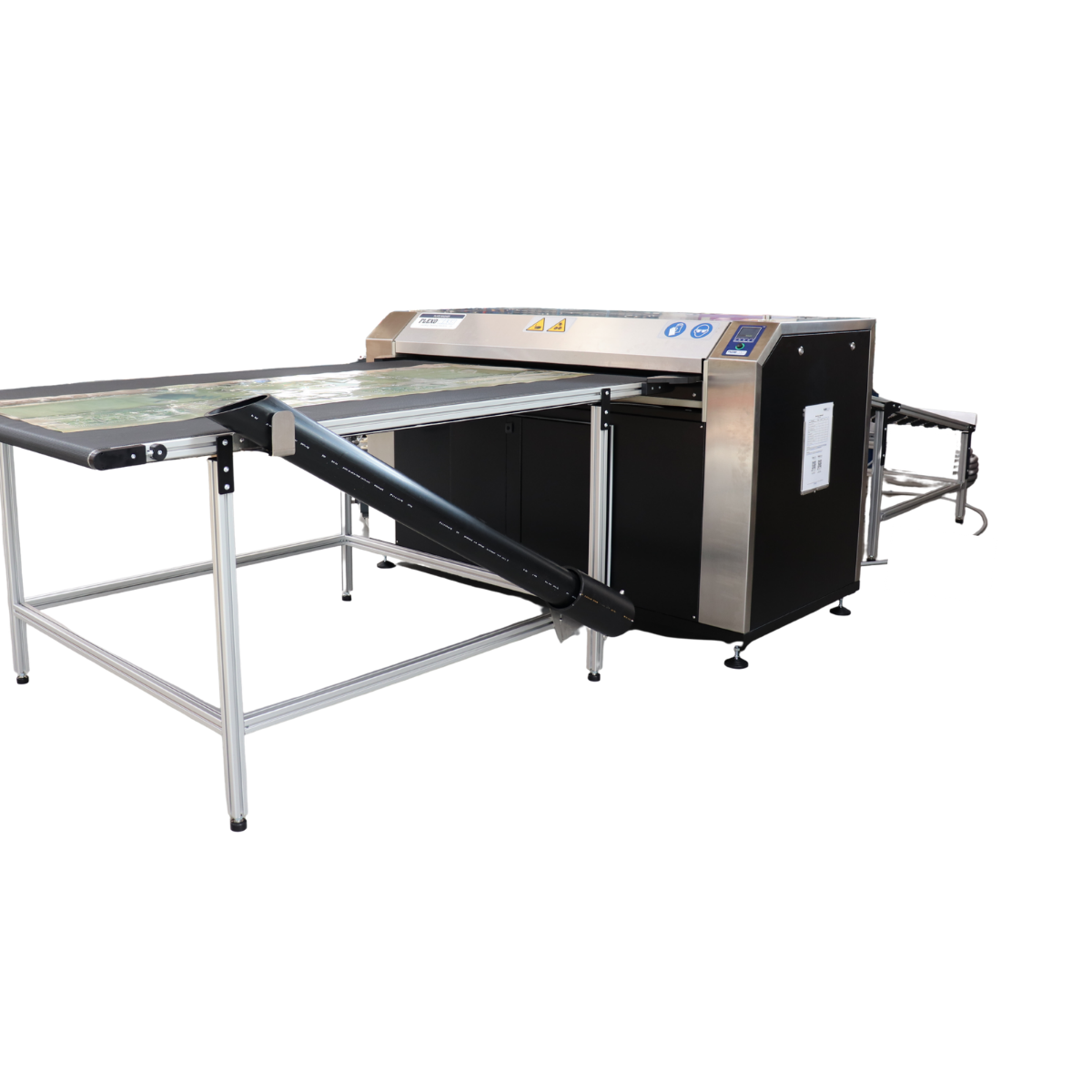

Plate Cleaner
A Plate Cleaner is a professional automatic cleaning solution developed for the flexographic and label printing industries. It is designed to safely and efficiently wash flexographic polymer plates and letterpress plates after printing.
Plates are loaded onto the machine’s conveyor system, which automatically transports them through the washing process. Specially formulated cleaning liquids and controlled washing action remove ink residues from the plate surface. The cleaned plates are then dried, allowing them to be reused or placed into storage shortly after cleaning.
The automated process provides a more consistent cleaning method than manual washing while helping reduce the risk of plate damage caused by improper handling or aggressive cleaning. Proper plate cleaning is important because damaged or contaminated plates can negatively affect print quality.
Flexo Wash supplies different plate-washing models to accommodate various production requirements. Current models cover plate widths from approximately 45 cm to 130 cm, with configurations available for fresh-water operation or closed-loop wash-water systems. Special DLE plate washers are also available for gently removing dust from laser-engraved plates after engraving.
Key Benefits
Fully automatic plate cleaning
Gentle treatment of flexographic plates
Suitable for polymer and letterpress plates
Efficient removal of ink residues
Clean and dry plates within a few minutes
Reduces manual cleaning labour
Helps reduce cleaning-related plate damage
Supports consistent print quality
Faster turnaround between printing jobs
Stainless-steel construction and durable materials
Available in different sizes to suit various plate widths
Fresh-water and closed-loop configurations available
Applications
The Flexo Wash plate cleaner is suitable for:
Flexographic printing plates
Polymer printing plates
Letterpress plates
Label printing
Flexible packaging production
General flexographic printing operations
Post-printing plate cleaning
Plate cleaning between production jobs
How It Works
Loading – The used printing plate is placed onto the machine’s conveyor.
Washing – The plate passes through the cleaning section where specially formulated cleaning liquids remove ink and residues.
Rinsing – The plate is rinsed to remove remaining cleaning solution and loosened contaminants.
Drying – The plate is dried, leaving it ready for reuse or storage.
Ready for Production – The cleaned plate can be returned to service or safely stored for its next use.
The automated process helps deliver consistent cleaning while minimizing manual intervention.
Cleaning Liquids
The machine is designed to work with specially formulated Flexo Wash cleaning liquids. The appropriate cleaning liquid should be selected according to the type of ink and plate-cleaning application. Flexo Wash offers cleaning solutions for different ink systems, including water-based, solvent-based and UV inks.
Packaging & Supply
Decase Chemicals can assist with selecting the appropriate Flexo Wash plate-washing solution based on your printing press, plate sizes, ink systems and production requirements.
Manufacturer: Flexo Wash
Product Category: Automatic Flexographic Plate Washing Equipment
